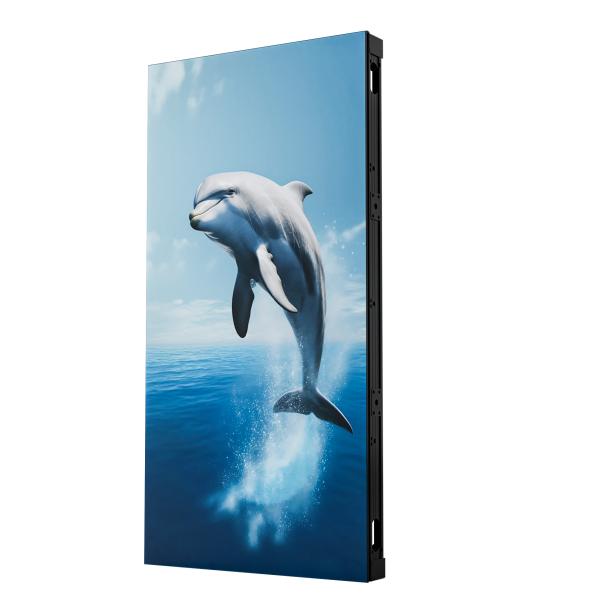

P4.8 Outdoor Fixed LED Display 500X1000mm Aluminum profile IP65 19.5kg

Brand Name : VW

Model Number : P3.9

Certification : CE, ROHS, EMC

Place of Origin : CN

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T,L/C

Supply Ability : 2000sqm/month

Delivery Time : 15 work days

Packaging Details : Plywood case

Product Name : P4.8 Outdoor Fixed LED Display 500X1000mm Aluminum profile IP65 19.5kg

Pixel Pitch : 3.91mm

Cabinet Weight : 19.5kg/Cabinet

Module Size : 500*250*14mm

Cabinet Size : 500*1000*87mm

Brightness : 7500CD/m²

IP Rating : IP65

Maintenance : Front/Back

Contact Now

P4.8 Outdoor Fixed LED Display 500X1000mm Aluminum profile IP65 19.5kg


Product Description:

High-precision aluminum profile cabinet is only 87mm thick/19.5kg (500×1000mm),500×1000mm and 500×750mm cabinets are free to mix and match shaped shapes, sharing the same type of control box. Push-button lock realizes 5 seconds fast disassembly and assembly, optional arc lock supports curved surface splicing. Fanless ≤ 40dB silent operation, point-by-point calibration to ensure pixel-level uniformity. 3840Hz high refresh to eliminate 1/3000s shutter residual shadow, for stage performances, conferences, to provide a broadcaster-level visual base.

P4.8 Outdoor Fixed LED Display 500X1000mm Aluminum profile IP65 19.5kg


Features:

  • Point By Point Calibration: Fine-tune the white balance of each lamp bead point by point to eliminate chromatic aberration and light spots, achieve pixel-level display consistency.
  • Work In Silence: Fanless silent design, working noise ≤ 40dB (A) ambient sound level.
  • Installation And Maintenance: Optional curved locks for 10°~15° and 90° angles; modular push-button locks for 5-second quick assembly and disassembly; optional magnetic modules to support front service & rear service, efficient and convenient assembly and disassembly.
  • Cabinets Design: The 500x1000mm and 500x750mm cabinets can be mixed and assembled into a variety of shapes; sharing a simple mini control box saves installation and calibration time.


Technical Parameters:

Item Specification
Parameter		 Specification
Parameter		 Specification
Parameter		 Specification
Parameter
PixelPitch 3.91mm 4.81mm 6.94mm 10.41mm
Resolution rate 128*64mm 104*52mm 72*36mm 48*24mm
Module Size 500*250*14mm 500*250*14mm 500*250*14mm 500*250*14mm
Pixel LED SMD1921 Black led SMD1921 Black led SMD2727 Black led SMD2727 Black led
Module Power ≤74W ≤60W ≤60W ≤60W
Driving IC ICN2055 ICN2055 ICN2055 ICN2055
Drivingway 1/8 1/13 1/6 1/2
Material Aluminum profile Aluminum profile Aluminum profile Aluminum profile
Cabinet Weight
(kg/Cabinet)		 19.5kg 19.5kg 19.5kg 19.5kg
Resolution rate 128*256Dots 128*208Dots 72*144Dots 48*96Dots
Cabinet Size 500*1000*87mm 500*1000*87mm 500*1000*87mm 500*1000*87mm
Module quantity 1*4 1*4 1*4 1*4
Density 65536 Dots/㎡ 43264 Dots/㎡ 20736 Dots/㎡ 9216 Dots/㎡
Brightness 7500CD/m² 7500CD/m² 7500CD/m² 7500CD/m²
View Angel H/V:120°/120° H/V:120°/120° H/V:120°/120° H/V:120°/120°
Maximal power/㎡ ≤650W/㎡ ≤520W/㎡ ≤520W/㎡ ≤520W/㎡
Average Power/㎡ ≤220W/㎡ ≤160W/㎡ ≤160W/㎡ ≤160W/㎡
Refresh Frequency 3840Hz 3840Hz 3840Hz 3840Hz
Gray Grade ≥13bit ≥13bit ≥13bit ≥13bit
Protection grade IP65 IP65 IP65 IP65
Maintenance Front/Back Front/Back Front/Back Front/Back

Application:

  • Outdoor creative modeling
  • Building entrance
  • Park entrance
  • Swimming pool

P4.8 Outdoor Fixed LED Display 500X1000mm Aluminum profile IP65 19.5kg



FAQ

A1:Can you provide OEM/ODM service?

Q1:Yes,well supported.We can customize it according to your requests.


A2:How long for the warranty?

Q2:1-3 year warranty, lifetime free upgrade.


A3:Is your company a real manufacturer?

Q3:Yes, we are a factory with more than 10 years of production experience. You are welcome to visit us.


A4: How is the quality of the product?

Q4: Quality management is the cornerstone of an enterprise,and we will strictly control product quality to provide customers with high-quality services.


Q5:What's your after-sale service?

A5:lf any problems, you will get our reply within 24 hours. Solution will be offered instantly.


Q6:Can the product system be customized with models?

A6: Yes, support customization.
